제품 상세 정보:
|
| 재료: | Q355B | 표면 처리: | 그림 |
|---|---|---|---|
| 길이: | 4-12m | 작업 조건: | 깊은 우주 |
| 버킷 용량: | 0.1/0.6cbm | 무게: | 0.25-4.15T |
| 확장 방식: | 슬라이딩 | 상태: | 100% 새로운 새 |
| 보증: | 6 개월 | 적합한 굴삭기 (TON): | 3-36T |

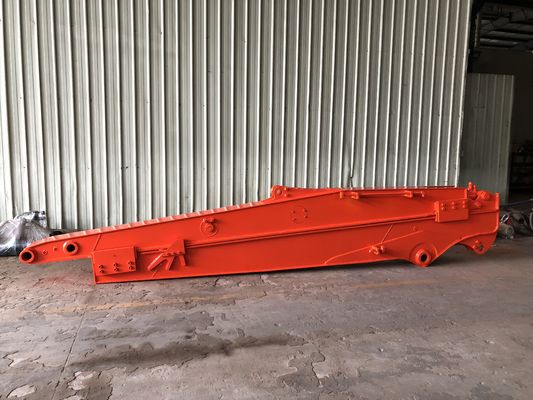

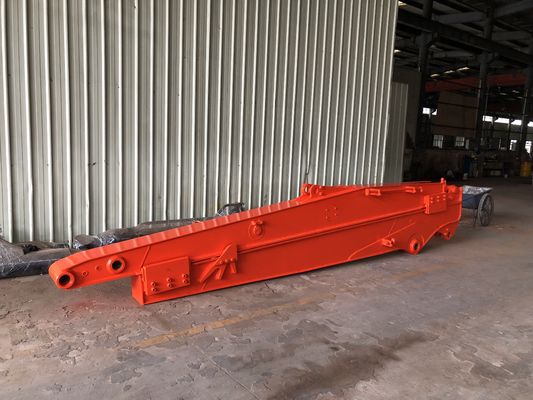

Telescopic Boom/Sliding Arm Specifications
The sliding arm is crucial for digging deep wells, foundation pits, tunnels, and sewage pipelines for municipal projects.
With a foundation in 2018, our company has over 6 years of industry experience. Our engineering team has more than 10 years of expertise in designing and customizing long arms for various excavators.
This product is compatible with all excavator models, and we offer OEM services as needed.
We adhere to an advanced manufacturing process that meets international standards.
We have installation dimensions for most excavators, allowing us to create a long arm customized to your needs.
Before welding, we use a large milling machine to mill the edges of steel plates, which ensures better penetration and structural performance. We also incorporate reinforcement plates for added durability.
If required, we can include additional pipes for specific applications.
You can utilize your existing arm cylinder with our long boom to save costs; we can also arrange for a new cylinder if necessary.
Some components can be reinforced with thicker plates or by overlapping plates for heavy-duty applications.
Our welding process involves shielded gas welding, using a combination of 80% argon and 20% carbon dioxide, regarded as the industry standard.
EXCAVATORS WITH A TELESCOPIC ARM
(UPPER ARM SLIDING TYPE)
1. Thanks to the hydraulic sliding system in this model, the arm contracts and expands (‘telescopes’) speedily, providing high working efficiency.
2. Sliding mechanisms using rollers on the slide surfaces makes adjustment easy and prevents vertical and horizontal vibrations of the arm, which in turn minimises the wear which shortens arm life.
3. With the arm extended, the excavator can dig to the same depth as machines three (3) classes higher, so this becomes a useful attachment for restricted job sites where a wide working range is needed.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Some size references
|
Excavatoe (Ton) |
Effective Length (mm) |
Max Depth (mm) |
Max Radius (mm) |
Bucket Capacity (cbm) |
| 12-15T | 5700 | 8000 | 10400 | 0.2-0.3 |
| 20-25T | 9150 | 10000 | 13000 | 0.4-0.7 |
| 20-25T | 11000 | 12000 | 15200 | 0.4-0.7 |
| 30-35T | 11000 | 12000 | 15800 | 0.6-0.9 |
| 40-45T | 12100 | 16000 | 19200 | 0.8-1.3 |
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product Details of Telescopic Arm
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
What is the purpose of beveling the long arm/tunnel arm plate?
Most welding machines commonly used in the industry have a penetration depth of only 3mm. Since the thickness of our long arm plate is at least 8mm, without beveling, the welder would not be able to fully penetrate through the entire joint. This would result in weak welds, leading to issues such as weld cracking in the future.
We employ mechanical beveling, whereas other factories rely on manual beveling (as shown in the figure).
Large Floor-Standing Double-Sided Boring and Milling Lathe:
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
About Zhonghe Machinery Company Profile:
Kaiping Zhonghe Machinery Manufacturing Co., Ltd.
Kaiping Zhonghe Machinery Co., Ltd. has been dedicated to customizing excavator booms and accessories. Our facility in Jiangmen City encompasses 21,000 m³ of steel structure workshop with cutting-edge machinery. Our skilled workforce includes over 100 technicians and 50 experienced welders, supported by 30 senior designers. Our R&D team has amassed over 100 patents, maintaining rigorous quality control and producing approximately 800 sets annually.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
CE certification & Utility model patent certificates
Our products have been exported to over 60 countries, utilizing various transportation methods such as sea, land, and air freight. For packaging, we use either wooden crates or stretch film to secure the products. Before shipment, the goods are carefully packaged and then loaded into containers to ensure their safety during transit.
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging & Shipping
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
FAQ(Some frequently asked questions):
Q1: Are you a manufacturer?
A1: Yes, Zhonghe Machinery manufactures a wide variety of attachments for excavators, including long reach arms and various bucket types. We focus on delivering high-quality cast steel products at moderate prices for optimal success.
Q2: How long is the sliding arm for a conventional 20-ton excavator machine?
A2: The 9-meter sliding arm is capable of digging over 8 meters, or almost 9 meters, without needing to press down, as defined by our customers.
Q3: What length does the 10-meter sliding arm in our product price list refer to?
A3: The 10-meter reference points to the maximum digging depth of more than 10 meters, indicating bucket depth rather than arm length.
Q4: What are the advantages of our sliding arm?
A4: First, the double limit design reduces oil cylinder vibrations. Second, we utilize a wear-resistant block design instead of pulleys for enhanced durability and easier maintenance. Third, our sliding arm is versatile, utilizing more original accessories that help cut user costs. Finally, we have the highest market share and notable customer recognition.
