제품 상세 정보:
|
| 상태: | 아주 새로운 | 재료: | 0355B |
|---|---|---|---|
| 애플리케이션: | 이용 가능한 모든 브랜드 굴삭기 | 길이: | 선택적인 16-28 |
| 지불 조건: | 전신환, 토론 | 배달 시간: | 근무일 15 일 |
| 포장 세부 사항: | 버블 백 포장 | 인증: | CE Certificate |
| 브랜드 이름: | Zhonghe | 포트: | 센즈헨 세코우 (공항) |
River dredging
The continuous expansion of the city and the demolition of the old city. For the sake of safety, the government did not demolish the relatively lower floors by blasting but chose three sections of outstretched arms for demolition. The three-section extension arm adds a section of the intermediate arm on the basis of the original two-section extension arm. The middle arm can greatly protect the driver's safety. The third stage extension arm works with a hammer or hydraulic shear.
| Material Use | Q345B, Q550D, Also can customize to customer requirements |
| Product Warranty Period | 6 months,9 months,1 Year |
| Product Size | Most lengths can be 34M, According to customer requirements, Any excavator model |
1. Less maintenance work
Use high-quality materials, such as Q355B (default), Q690D (optional), Ningbo connector, seamless precision pipe, graphite alloy copper sleeve and solid but lightweight bucket cylinder.
2. Robust and durable
Built-in reinforcing rib. Professional welding skills for different bearing positions. Groove preparation before welding (45 ° edge mining).
3. Tolerance is within 5-10um
The drilling tolerance is within 5-10um to ensure accuracy.
4. Deeper and higher
The maximum working range and the maximum digging height are larger because the angle between the boom and the arm can reach 163 degrees.
5. High efficiency and fuel saving
It is lighter and takes quality into account, which not only ensures work efficiency but also saves fuel.
6. Fillet weld test
We can determine the quality of fillet welds by performing NDT and mechanical tests. Macroscopic inspection and fillet weld fracture test can well observe the weld profile, fusion and penetration, and reveal whether there are any defects in the weld, such as pores or inclusions. These tests are used to test the welder's ability to weld fillet welds.
Customized:
1. Applicable to excavators of all brands.
2. Color, length and material can be made according to your requirements.
3. Additional pipes can be added to accommodate some additional applications.
4. Boom cylinder and stick cylinder can also be provided according to customer requirements.
Strong production capacity:
We can produce 50 sets of excavator arms per month.
The annual output of various excavator arms is 600 sets.
Good service:
1.24 hours of online support.
2. Reservation video technical support.
(Our engineers have focused on excavator arms and accessories for more than 10 years)
3. The long arm of the excavator shall be a two-section/three-section joint, which can be loaded into the container to save freight.
Guarantee:
1 year for long arm, 180 days for the cylinder and connecting rod, and 90 days for the bucket.
|

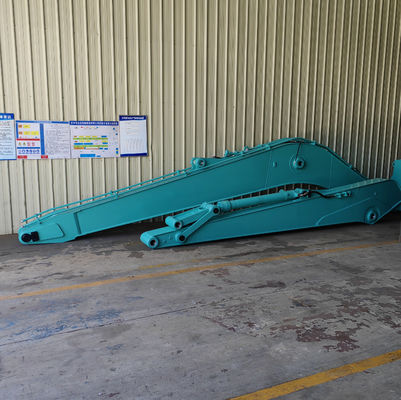

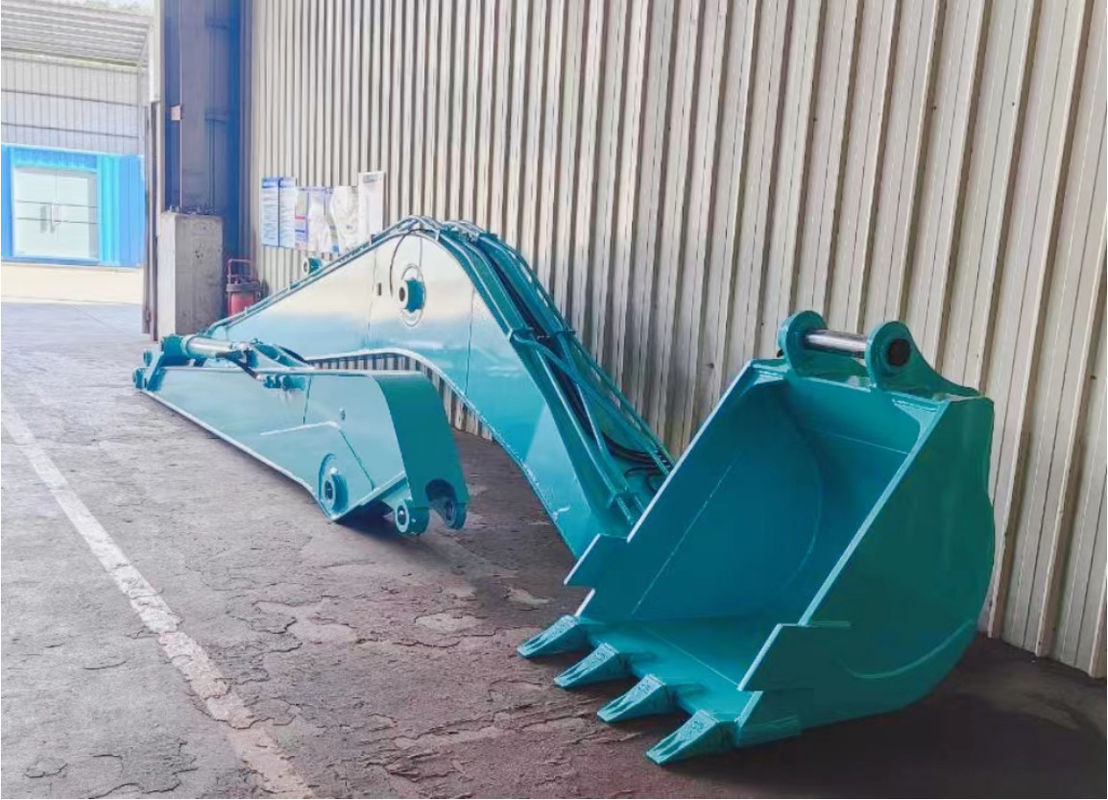

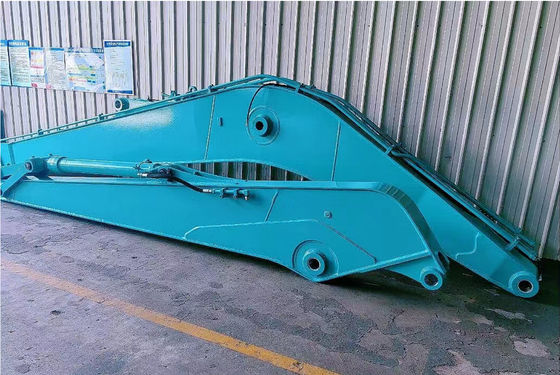

Excavator long boom
|
Excavator long arm
|

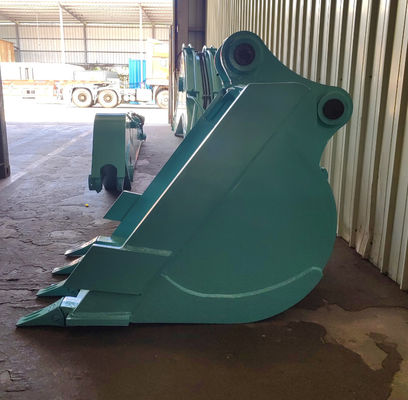

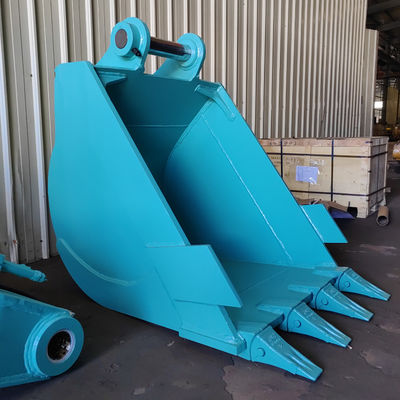

Standard bucket
|
|
Linkage kit
|
Bucket cylinder
|
Butter hose
|
|
Pin
|
Lubricating system
|
Seals
|
Weight |
Model |
Part Length |
Total length(m) |
Weight(kg) |
Maximum removal height(m) |
| Total Length(mm) | 25T | 8.5 | 16 | 2800 | 16M |
| Boom(A)(mm) | 2.3 | 900 | |||
| Arm(b)(mm) | 5.2 | 1700 | |||
| Maximum Digger Radius(C)(mm) | 30T | 9.5 | 18 | 3000 | 18M |
| Maximum Digger Depth(C)(mm) | 2.3 | 1000 | |||
| Maximum Unloading Height(E)(mm) | 5.2 | 1950 | |||
| Maximum Digger Height(F)(mm) | 35T | 10.5 | 20 | 3500 | 20M |
| Bucket Volume(m³) | 2.3 | 1100 |
